swathers

CLAAS LINER SWATHERS

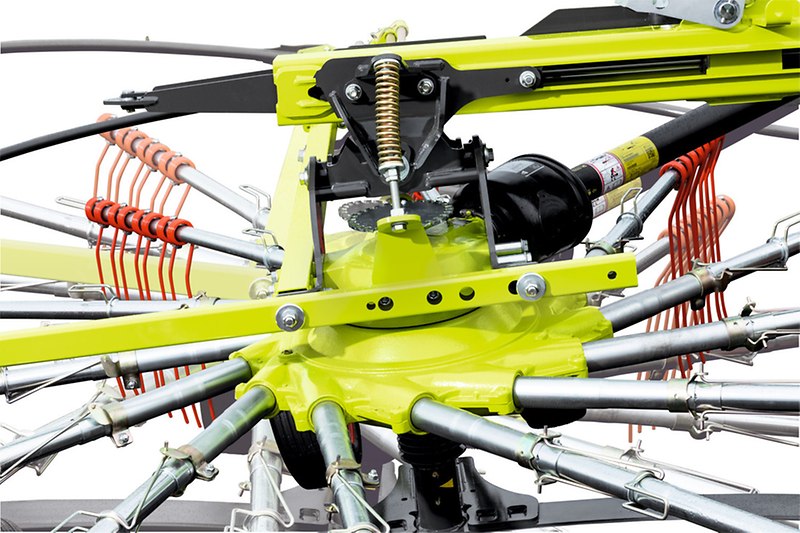

High milk yield starts with high-quality silage—and that means keeping crude ash (soil contamination) low. Excess dirt reduces energy value, protein quality, and ultimately milk production. CLAAS swathers minimize contamination by closely following ground contours with a flexible rotor chassis and wide pivot range. Their jet effect prevents tines from digging into the soil, while double-cranked tines ensure clean, gentle crop pickup for better forage quality.

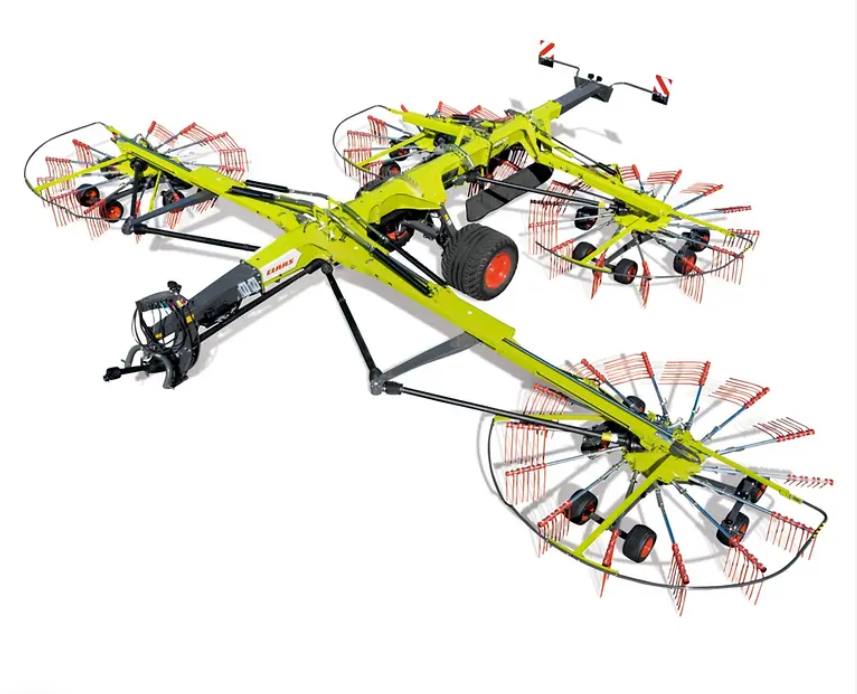

LINER four-rotor swathers

The LINER four-rotor swather from CLAAS sets new standards in forage harvesting. Designed for high area output and uncompromising reliability, it combines huge working widths with perfect swath formation – for maximum efficiency in the field. Its stable frame, low-maintenance technology and intelligent ground-contour following guarantee long life and optimal forage quality. For everyone who demands power and precision: the LINER delivers maximum performance, swath after swath.

LINER four-rotor swathers SPECIFICATIONS

MODEL	WORKING WIDTH (M)	Swathing rotor	Swathing rotor diameter (mm)	Tine bars per swathing rotor	Removable tine bar
4900 BUSINESS PRO	10.10-15.00	4	3,800	14	Yes (PROFIX)
4800 BUSINESS PRO	9.30-13.60	4	3,500	12	Yes (PROFIX)
4800 BUSINESS	9.30-13.60	4	3,500	12	Yes (PROFIX)
4700 BUSINESS PRO	9.30-12.70	4	3,300	12	Yes (PROFIX)
4700 BUSINESS	9.30-12.70	4	3,300	12	Yes (PROFIX)

LINER dual-rotor swathers with central swathing

The CLAAS LINER dual-rotor swathers with central swathing deliver high-output, uniform windrows for efficient forage collection. Designed for precision and gentle crop handling, they ensure low contamination and consistent swath formation. With excellent ground adaptation and reliable performance, the LINER series helps maximize forage quality and harvesting efficiency.

LINER dual-rotor swathers SPECIFICATIONS

MODEL	WORKING WIDTH (M)	Swathing rotor	Swathing rotor diameter (mm)	Tine bars per swathing rotor	Removable tine bar
2900 TREND	8-9	2	3,800	14	Yes (PROFIX)
2700 TREND	6.80-7.40	2	3,200	12	Yes (PROFIX)

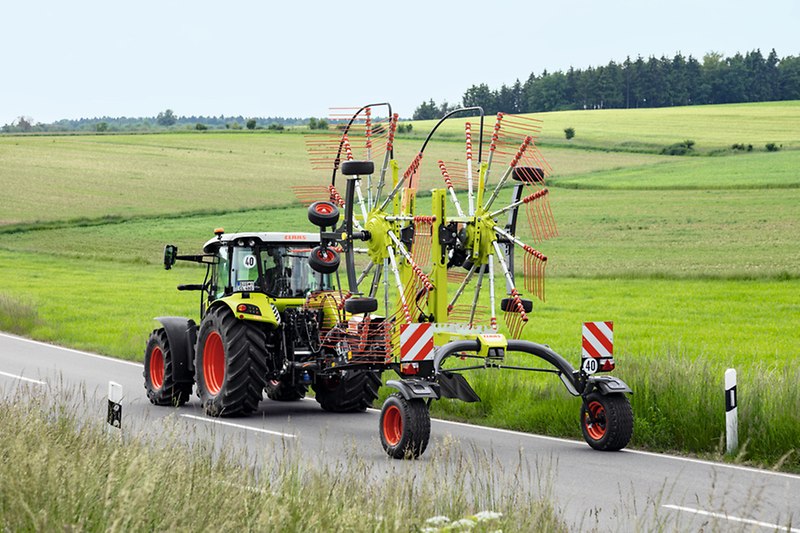

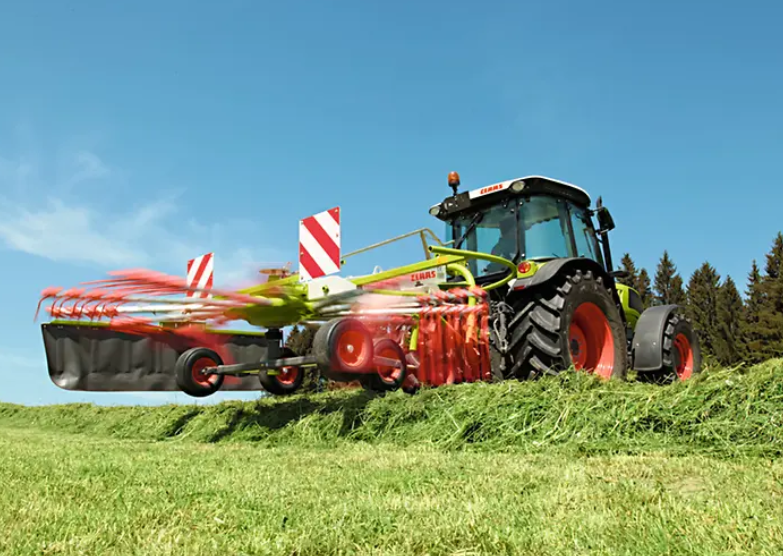

LINER single-rotor swathers

Whether with three-point hitching or as a towed model – precise ground-contour following, high work rates and outstanding reliability are features that the LINER single-rotor swathers, with working widths of 12′ – 15.5′ (3.70 to 4.80 m), share with other members of the LINER family.

LINER SINGLE-rotor swathers SPECIFICATIONS

MODEL	WORKING WIDTH (FT)	Swathing rotor	Swathing rotor diameter (FT)	Tine bars per swathing rotor	Removable tine bar
450 T NA	14.80	1	11.50	12	Yes (PROFIX)
370 T NA	12.10	1	9.50	11	Yes
